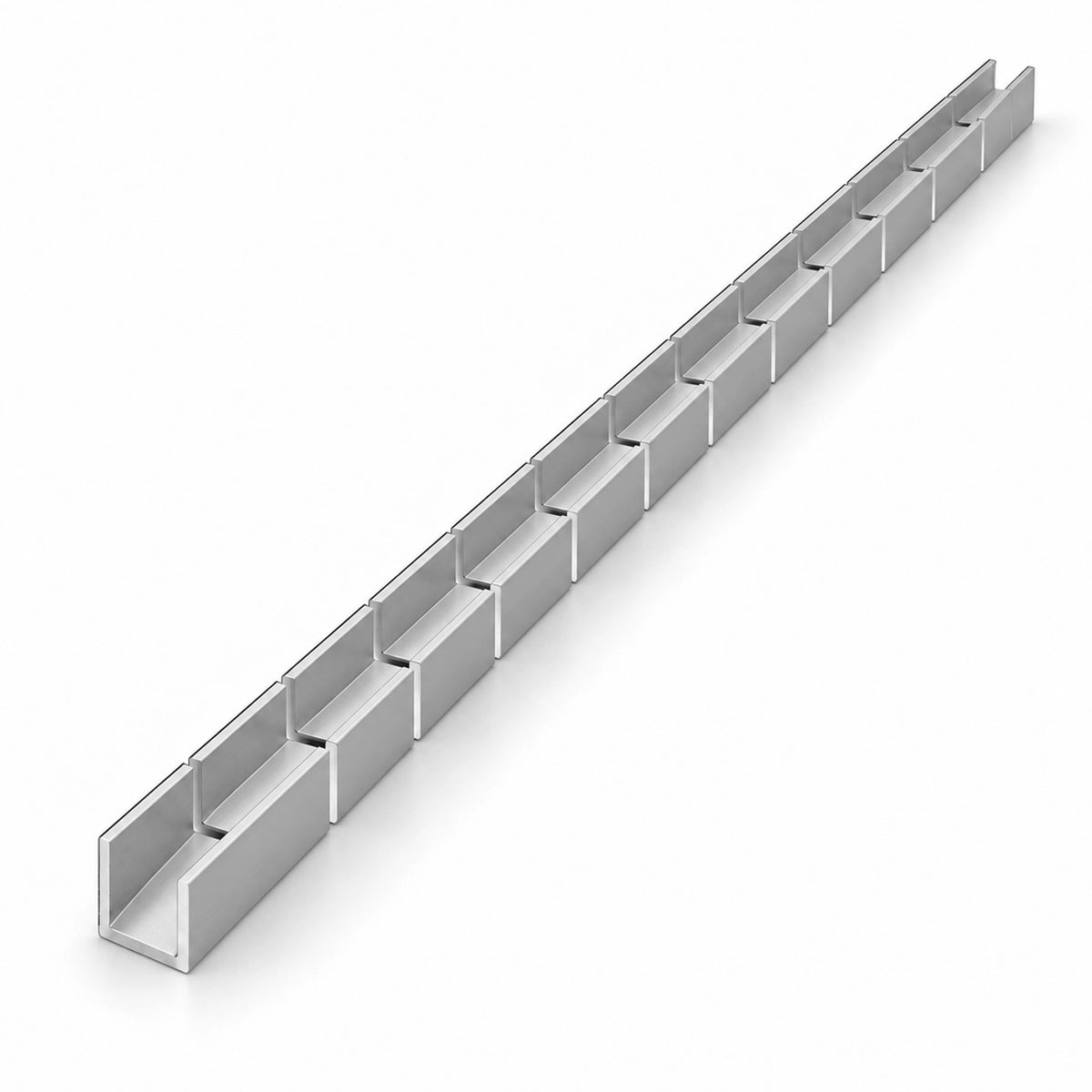

8x16mm plain bendable aluminium profile for IP67 neon flex shown straight on white
Warranty
7 Years
Fits
8x16mm IP67
Material
Aluminium
Flexibility
Bendable
Speak to an expert 01952 370028

Plain Bendable Aluminium Profile for 8x16mm IP67 Neon Flex

SKU: NFP-BP0816-1M

  • Bendable Profile
  • Aluminium
  • Fits 8x16mm IP67 Neon Flex
£9.25 Inc. VAT
300 units available
Length
1

Encrypted & secure checkout

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Visa
  • Clearpay
Speak to an expert 01952 370028
Description

Create curved lighting layouts with this plain bendable aluminium profile for 8x16mm IP67 Neon Flex. Its slotted, flangeless channel supports the matching neon flex along curved installation routes.

Choose a 1 metre, 2 metre or 2.45 metre length for your installation. Plan the curve around the bend direction and minimum bend radius specified for your neon flex.

The 1 metre length includes 1 screw set: 2 screws and 2 wall plugs. The 2 metre and 2.45 metre lengths each include 2 screw sets: 4 screws and 4 wall plugs. LED Neon Flex is sold separately.

Dimensions of the plain bendable aluminium profile for 8x16mm IP67 Neon Flex

Delivery charges

Mainland UK: 1 Metre — £6.95 below £90; free Next Day delivery from £90 when no long profile is in the basket. 2 Metre and 2.45 Metre — £19.85 at any order value and excluded from free delivery. Mixed-length baskets containing a 2 Metre or 2.45 Metre profile use the £19.85 long-profile charge. Other destinations are calculated at checkout.

Product Type
Aluminium Profile
Dimensions
9.8 ± 0.2mm wide × 16.3 ± 0.2mm high
Warranty
7 Years
Specifications
Product Type
Aluminium Profile
Metres
1 Metre / 2 Metre / 2.45 Metre
Dimensions
9.8 ± 0.2mm wide × 16.3 ± 0.2mm high
Width
9.8 ± 0.2mm
Depth
16.3 ± 0.2mm
Shape
Plain slotted bendable U-channel
Material
Aluminium
Warranty
Up to 7 years
Base Thickness
0.9mm
Brand
ATOM LED
Channel Opening
8 ± 0.2mm
Compatible Ip Rating
IP67 Neon Flex
Included Items
1 profile; 1m: 2 screws + 2 wall plugs; 2m/2.45m: 4 screws + 4 wall plugs
Internal Depth
14.5mm
Neon Flex Size
8x16mm
Wall Thickness
0.9mm
Technical Documents
Shipping & Returns
2 Metre Profile Delivery

Charges and service to be confirmed.

3 Metre Profile Delivery

Charges and service to be confirmed.

30-Day Returns

30-day returns window — free returns on faulty products

Talk to Us

01952 370028 · Mon–Fri 9am–5pm

Shipping

Delivery charges and available services for 2 metre and 3 metre profiles are to be confirmed. Contact us for delivery advice before ordering.

Large orders and pallet shipments: call 01952 370028 for a quote.

For more information see our detailed Shipping Page.

International Shipping

Contact us to confirm delivery availability and charges for destinations outside Mainland UK.

Returns & Refunds

The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:

  • Standard LED strip lights supplied as 5-metre rolls
  • Straight aluminium profiles
  • Power supplies and drivers
  • Accessories (connectors, controllers, dimmers, end caps)

Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.

Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.

Refunds are processed within 5–10 working days of receiving the returned item.

For more details see our Returns & Refunds page.
