Kitchen Plinth & Kickboard LED Neon Flex 10x6mm 24V IP65
SKU: NFWW3024V-1006-1M
-
IP65 Waterproof
-
Top Bend
-
Corner Bend
-
Flexible
Encrypted & secure checkout
Description

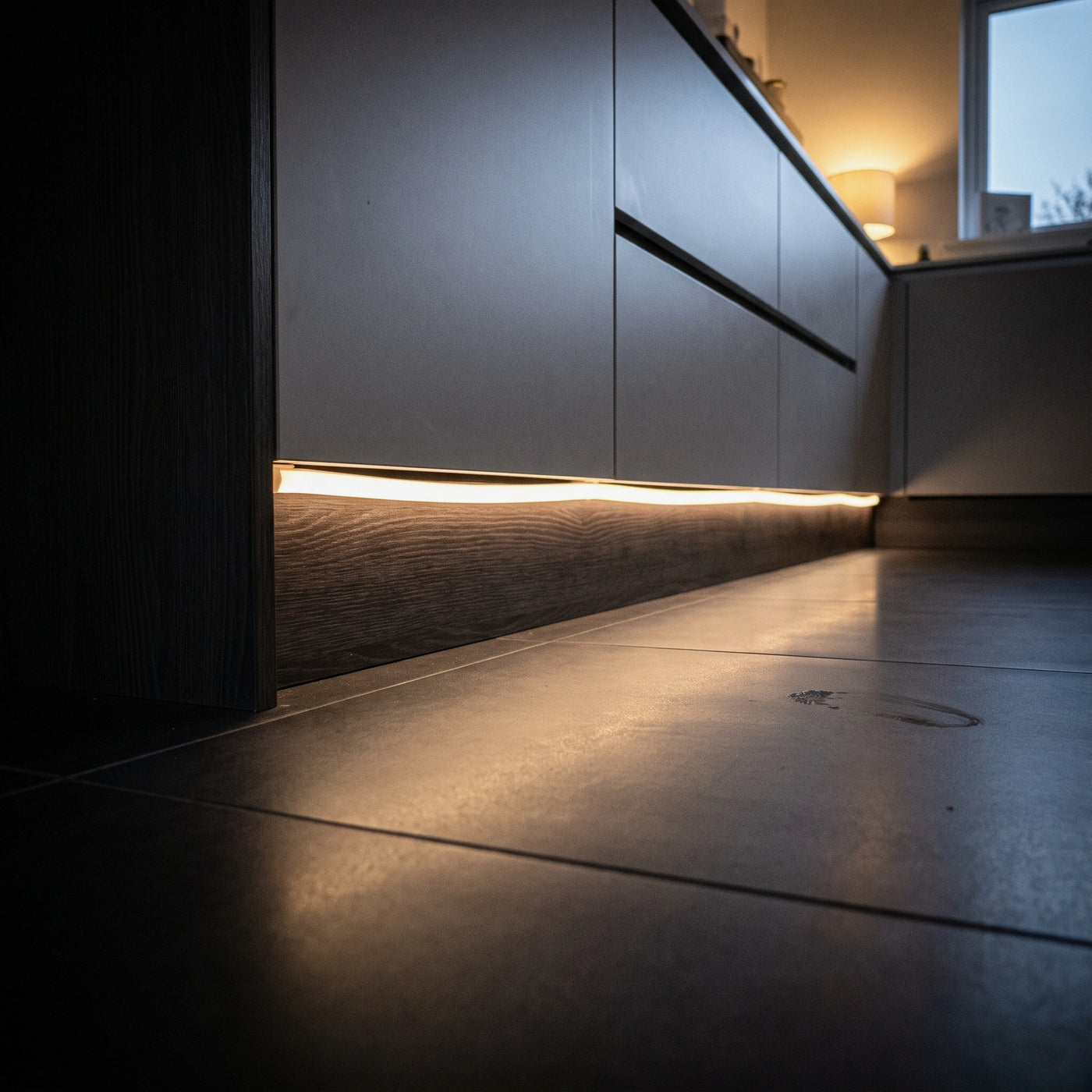

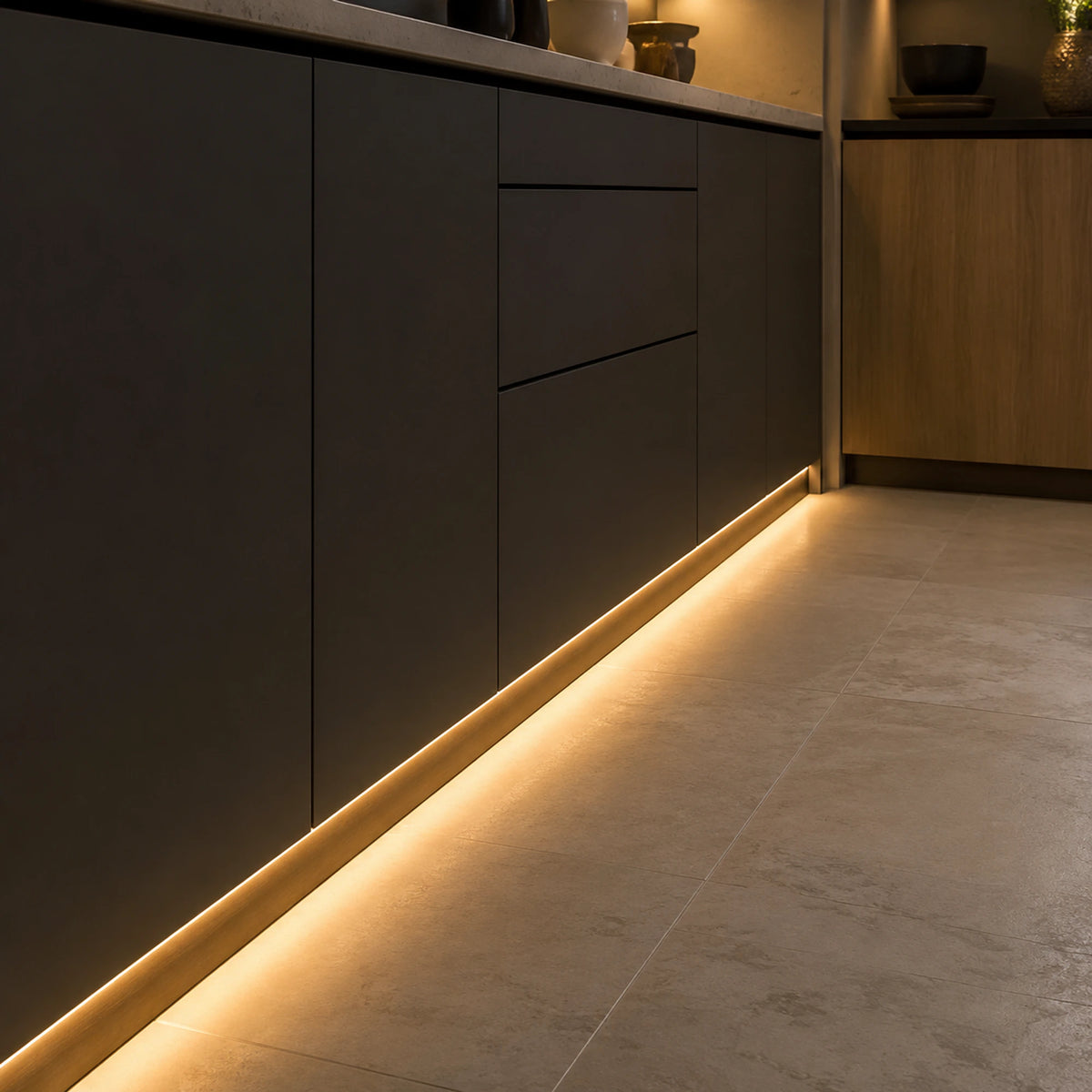

Plinth runs sit about 40mm off a floor that gets mopped. 10×6mm is the widest section in the mini range, so it recesses into a profile that holds the flex clear of the floor line while still washing light across it. At 280 LEDs/m it is the densest section we stock.
We cut every run to your metre length and seal the ends before dispatch. The flex cuts at fixed 25mm intervals, so your run lands on the nearest 25mm to the length you ask for — enough resolution to follow a plinth around a return. Choose your colour temperature and length below.
Where this section fits
- Plinth and toe-kick — washes a soft line across the floor without glare at eye level.
- Wide cove details — 280 LEDs/m stays dot-free across a broad diffuser.
- Stair risers and bed bases — the widest section handles a deeper channel.
Wiring and drivers
Total the metres, multiply by the watts per metre, then add 20% headroom. Wire multiple runs in parallel from one 24V driver — series wiring multiplies voltage drop and the far end reads visibly dimmer. For dimming, pair with a trailing-edge dimmable driver; leading-edge dimmers cause flicker.
Order before 2pm and standard lengths dispatch the same working day from Telford. Questions on a specific rebate? Call 01952 370028 or email operations@atomled.co.uk.
- Product Type
- LED Neon Flex
- Colour
- Warm White 3000K, Natural White 4000K, Cool White 6000K
- IP Rating
- IP65 Waterproof
- Voltage
- 24V
- Watts Per Metre
- 9W
- LEDs Per Metre
- 280
- Max Run Length
- 10m
- CRI
- >90
- Dimensions
- 10x6mm
- Warranty
- 4 Years
Specifications
- Product Type
- LED Neon Flex
- Colour
- Warm White 3000K, Natural White 4000K, Cool White 6000K
- IP Rating
- IP65 Waterproof
- LEDs Per Metre
- 280
- Continuous Run
- 10m
- Voltage
- 24V
- Watts Per Metre
- 9W
- Metres
- Cut to your metre length
- Dimensions
- 10x6mm
- Width
- 10mm
- Depth
- 6mm
- Bending Angle
- Top bend / vertical bend
- Lumens Per Metre
- 890 lm/m
- Cut Points
- 25mm (2.5cm)
- Operating Temperature
- -30°C to 50°C
- LED Type
- 2835
- Average LED Life Hours
- 50,000
- Continuous Operating Hours
- 12 hours
- Max Bending
- 20mm
- Shape
- Flat
- Certification
- UKCA, CE, RoHS
- Material
- Silicone
- Attachment
- Recessed groove or mounting clips
- Beam Angle
- 180°
- CRI
- >90
- Warranty
- 4 years
- Brand
- ATOM LED
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
