- Voltage
- 24V
- IP Rating
- IP20 Non-
- Cut
- 29.4mm
- Max Run
- 10m
- Warranty
- 7 Year
Red SCOB LED Strip 24V 10mm 272LEDs/m IP20 29.4mm Cut 10m Run
SKU: SCOB24V10M-RED-IP20
-
IP20 Indoor
-
SCOB
-
10m Run
Encrypted & secure checkout
Description

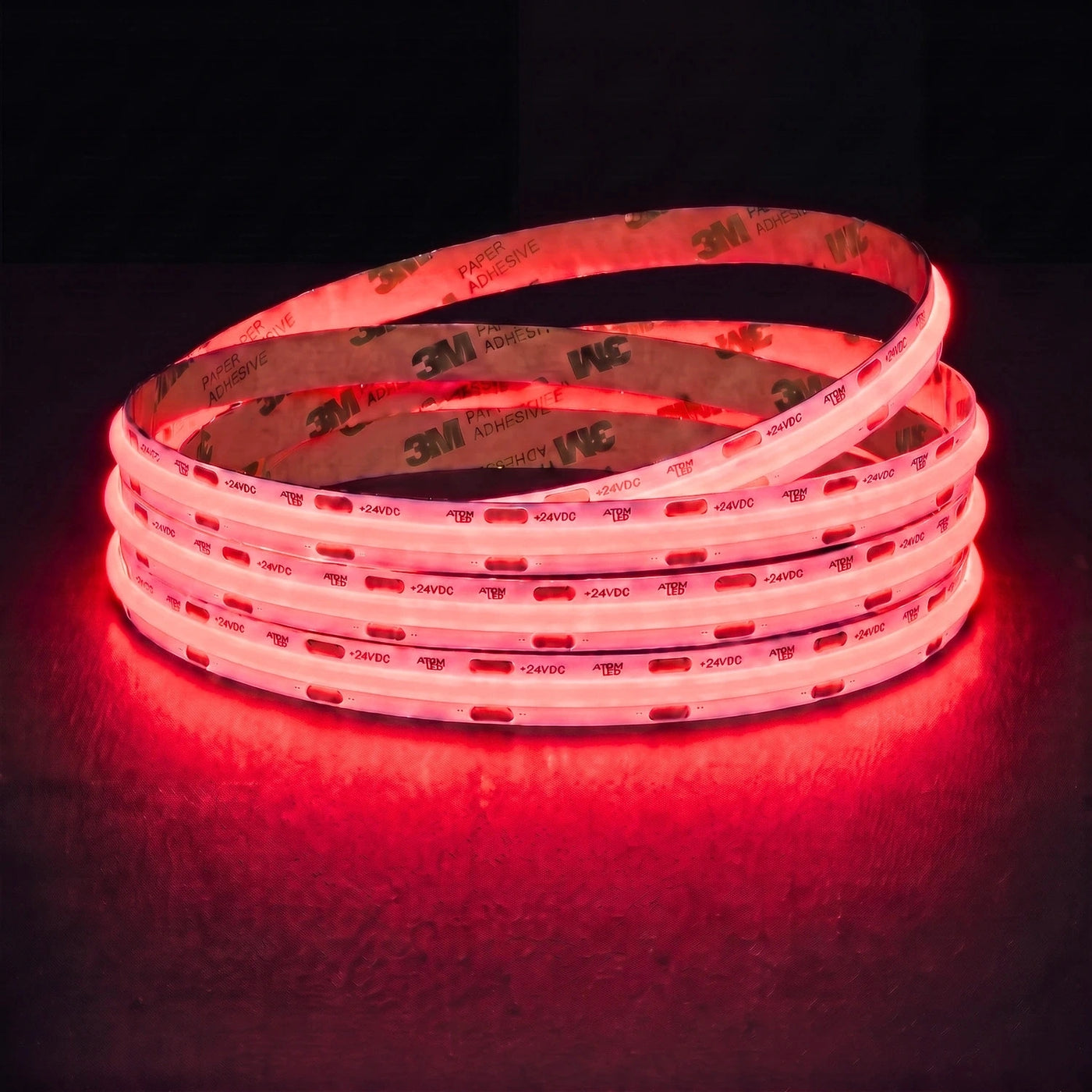

Red SCOB LED Strip creates a smooth, continuous line of light. We call it Special COB (SCOB): a strip of 2835 LEDs beneath a white finish. Its fixed red glow adds a bold accent to coves and display areas.
Use it for dry indoor kitchen under-cabinet lighting, bedroom coves, shelving and joinery. This is a single-colour strip, not an RGB colour-changing strip.
Common questions
Can I cut it to size? Yes, at the marked 29.4mm (2.94cm) intervals. Disconnect the power before cutting; do not cut between marks.
Is it dimmable? Use a compatible 24V DC single-colour dimming controller and a matched power supply. Dimming depends on the complete control setup.
Which power supply do I need? Choose a 24V DC constant-voltage supply for the strip load, with the supply manufacturer’s recommended capacity margin. Do not connect the strip directly to mains.
Can I use it outdoors or near water? No. This IP20 version is for dry indoor areas, away from splashes, steam and condensation.
Do I need an aluminium profile? A compatible profile helps dissipate heat and provides a neat installation. Allow space for the strip and its connections.
What if my installation is longer than 10m? Plan separate runs with a suitable power layout. Contact us before ordering for a larger project.
Dimensions
Bespoke LED lighting for UK projects
ATOM LED supplies bespoke, custom-cut LED lighting for UK homes, trade and commercial projects. This SCOB strip is cut and made to measure to your requirements at its permitted cutting points, within the 10m maximum run. Choose Made to Measure or send us your measurements for help with your bespoke lighting project.
- Product Type
- COB LED Strip
- Colour
- Red
- IP Rating
- IP20 Non-Waterproof
- Voltage
- 24V
- Watts Per Metre
- 9 W/m
- LEDs Per Metre
- 272
- Max Run Length
- 10m
- CRI
- N/A (single colour)
- Dimensions
- 10mm
- Warranty
- 7 Years
Specifications
- Product Type
- COB LED Strip
- Colour
- Red
- IP Rating
- IP20 Non-Waterproof
- LEDs Per Metre
- 272
- Continuous Run
- 10m
- Voltage
- 24V
- Watts Per Metre
- 9 W/m
- Metres
- 1m–10m
- Dimensions
- 10mm
- Width
- 10mm
- Cut Points
- 29.4mm (2.94cm)
- LED Type
- SCOB LED Strip
- Attachment
- 3M Tape
- CRI
- N/A (single colour)
- Warranty
- Up to 7 years
- Brand
- ATOM LED
Technical Documents
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: up to 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
