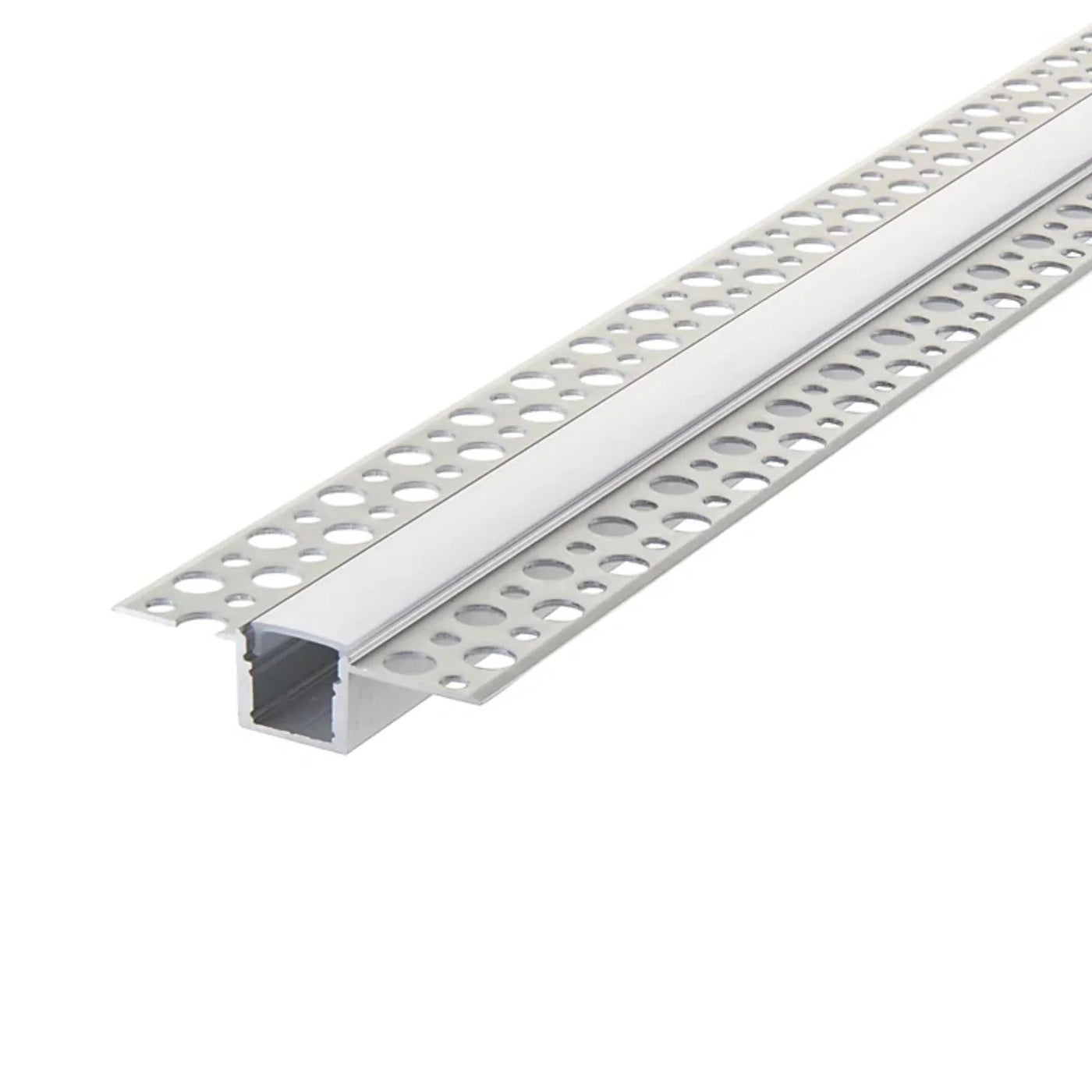

Straight plaster-in aluminium LED profile 60.3x15mm with opal cover and perforated wings
Voltage
DC Voltage
IP Rating
IP20
Warranty
7 Year
Speak to an expert 01952 370028

2 Metre Straight Plaster-in Aluminium LED Profile 60.3x15mm, Opal Cover

SKU: S-PIP-P2015-2M

  • Non-Waterproof
  • LED Strip
  • Reduced Glare
  • CRI 90
£27.85 Inc. VAT
100 units available
Length
1

Encrypted & secure checkout

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Visa
  • Clearpay
Speak to an expert 01952 370028
Description

Specifications:

  • Dimensions: 60.3 x 15mm
  • Internal channel: 15.4mm — fits LED strip up to 15mm wide
  • Body: 20 x 15mm
  • Material: Aluminium
  • Diffuser: Opal, supplied

This 2 metre straight plaster-in aluminium profile is designed to finish flush with plasterboard (drywall) ceilings and walls. The wide perforated wings key into the plaster, so once skimmed the profile disappears completely — leaving only a clean, glowing line of light. The result is a trimless lighting detail with no visible profile, fixings or trim.

Straight runs only. This is the rigid version of our plaster-in profile: it holds a dead-straight line over its full length, which is what you want for long ceiling slots, perimeter details and mitred corners. If your design follows a curve or an arc, use the bendable plaster-in profile instead, which has segmented wings and bends to a 200mm radius.

Applications

  • Office & commercial spaces: long unbroken ceiling slots in conference rooms, reception areas and hallways.
  • Retail & showrooms: a clean, premium light line that reads as architecture rather than a fitting.
  • Perimeter and cove details: straight runs around a room, mitred neatly at each corner.
  • Staircase and corridor lighting: continuous linear illumination with nothing protruding from the surface.

Important notes

  • To achieve a dot-free finish, use SMD LED strip with at least 120 LEDs per metre, or a DC voltage COB LED strip. The more LEDs per metre, the smoother the line.
  • Fix the profile to the framing before boarding, then cut the plasterboard to butt against the wings and skim over them.
  • Fit the opal diffuser after plastering and decorating. Plaster works into the retaining lips, dries hard, and the cover will then refuse to clip in cleanly.
  • The channel itself is IP20 — dry indoor locations only.

Included:

  • 1 x 2 Metre Profile
  • 1 x Opal Cover
  • 1 x Front & End Cap

(Strip Light not Included)

Part of the full aluminium LED profile range — every size and mounting style in UK stock.

Product Type
Aluminium Profile
Colour
Silver
IP Rating
IP20
Voltage
DC Voltage
Dimensions
60.3mm x 15mm
Warranty
7 Years
Specifications
Product Type
Aluminium Profile
Colour
Silver
IP Rating
IP20
Voltage
DC Voltage
Metres
2 Metre
Dimensions
60.3mm x 15mm
Width
60.3mm
Depth
15mm
Bending Angle
Straight runs only — not bendable
LED Type
DC Voltage
Max Bending
Not bendable — straight profile
Shape
Straight plaster-in recessed channel
Certification
UKCA, CE, RoHS
Material
Aluminium, opal silicone diffuser
Attachment
Plaster-in, recessed into plasterboard — straight runs
Warranty
Up to 7 years
Brand
ATOM LED
Led Strip Size
Up to 15mm
Weight
600g
Technical Documents
Delivery & Returns
Free UK Delivery

On 97% of products — Royal Mail 48-hour tracked

Free Delivery £90+

Parcelforce 48 — £15.85 under £90, free over £90

30-Day Returns

30-day returns window — free returns on faulty products

Talk to Us

01952 370028 · Mon–Fri 9am–5pm

Shipping

Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.

2-metre profile delivery: a 2-metre length is too long for our standard courier, so it ships on its own Parcelforce 48 service — £15.85 under £90, free on orders of £90 or more (1–2 working days). Next day, timed and Saturday services are not available on 2-metre lengths.

If your order mixes a 2-metre profile with other items, the 2-metre rate applies to the whole order and everything is despatched together.

Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.

Saturday Delivery is available as a paid option at checkout.

Large orders and pallet shipments: call 01952 370028 for a quote.

For more information see our detailed Shipping Page.

International Shipping

Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.

Returns & Refunds

The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:

  • Standard LED strip lights supplied as 5-metre rolls
  • Straight aluminium profiles
  • Power supplies and drivers
  • Accessories (connectors, controllers, dimmers, end caps)

Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.

Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.

Refunds are processed within 5–10 working days of receiving the returned item.

For more details see our Returns & Refunds page.
