- Voltage
- 24V
- IP Rating
- IP20 Non-
- Cut
- 8.33mm
- Max Run
- 15m
- Warranty
- 7 Years
Precision-Cut Under Cabinet Lighting – 8.33mm COB Strip 24V IP20
SKU: COB24V15M-40K-01M-UC
-
IP20 Indoor
-
Dotless COB
-
15m Run
-
CRI >90
Encrypted & secure checkout
Description
Precision-Cut Under Cabinet Lighting – 8.33mm COB Strip 24V IP20 is designed for detailed kitchen layouts where short cut intervals help the light line finish close to cabinet edges. The 10mm strip creates smooth white light, comes in five tones from 2700K to 6500K and is offered in 1m–15m lengths.
Why 8.33mm cuts matter around cabinets
The 24V strip uses 480 LEDs per metre at 9W/m and supports a maximum continuous run of 15m. Cut only at the marked 8.33mm (0.833cm) points; this fine interval helps reduce the unlit gap at an edge or corner.
Plan a precise under-cabinet installation
Can it be cut anywhere? No. Use only the marked 8.33mm (0.833cm) cut positions.
Which colour temperature should I choose? 2700K and 3000K create a warm appearance, 4000K gives a balanced neutral light for preparation areas, and 5000K or 6500K looks progressively cooler.
What else is needed? Use a compatible 24V constant-voltage power supply and a correctly sized 10mm aluminium profile. A compatible controller is optional for dimming; power supplies, profiles and controls are sold separately.
Where can it be installed? IP20 is for dry indoor cabinetry only. Keep the strip away from sinks, splashes, steam and condensation, and have mains-side work completed by a competent installer.
Why use an aluminium profile? It supports a straight professional finish, protects the strip and supports heat management.

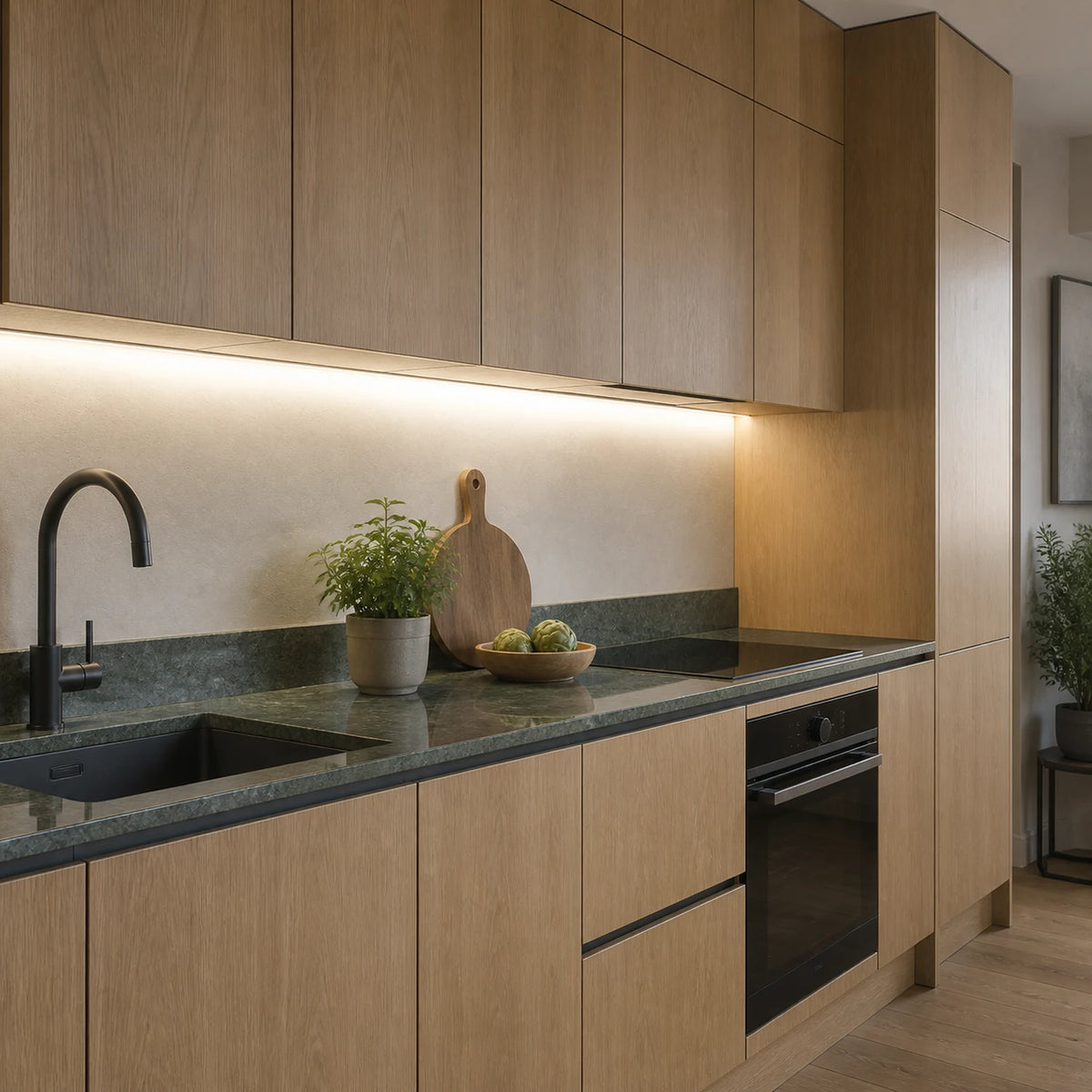

See the light in your kitchen
Choose one fixed white temperature for your strip; these are separate colour variants, not tunable-white modes. Illustrative previews only: screens, room finishes and dimming affect the appearance.
Made for your cabinetry: ATOM LED can prepare this strip to suit your cabinet run at the product’s permitted cut marks and run limits. Send your measurements for UK made-to-measure project help.
- Product Type
- COB LED Strip
- Colour
- 2700K–6500K Options
- IP Rating
- IP20 Non-Waterproof
- Voltage
- 24V
- Watts Per Metre
- 9 W/m
- LEDs Per Metre
- 480
- Max Run Length
- 15m
- CRI
- >90
- Dimensions
- 10mm
- Warranty
- 7 Years
Specifications
- Product Type
- COB LED Strip
- Colour
- 2700K–6500K Options
- IP Rating
- IP20 Non-Waterproof
- LEDs Per Metre
- 480
- Continuous Run
- 15m
- Voltage
- 24V
- Watts Per Metre
- 9 W/m
- Metres
- 1m–15m
- Dimensions
- 10mm
- Width
- 10mm
- Cut Points
- 8.33mm (0.833cm)
- LED Type
- COB LED Strip
- Attachment
- 3M Tape
- CRI
- >90
- Warranty
- 7 Years
- Brand
- ATOM LED
Technical Documents
Shipping & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Adding profiles? Mainland UK delivery for 1m profiles is £6.95 below £90, with free next day delivery on qualifying £90+ orders containing no 2m profiles. Any 2m profile makes delivery £19.85 for the whole order and is excluded from free delivery. Order before 1pm, Monday–Friday, for same-working-day dispatch of in-stock profiles.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
ATOM LED offers product-specific warranties: 7 years on single-colour COB strip, 5 years on RGB and RGBW COB strip, and 4 years on LED neon flex. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
