Tile-In Aluminium Profile 10×10mm IP67 Neon Flex 1 metre & 2 Metre
SKU: NFPROFILE-T1010-1M
-
Straight Profile
-
Tile-In Mounting
-
Fits 10 × 10 mm IP67 Neon Flex
Encrypted & secure checkout
Description
A neat tile-in finish for 10 × 10 mm IP67 Neon Flex

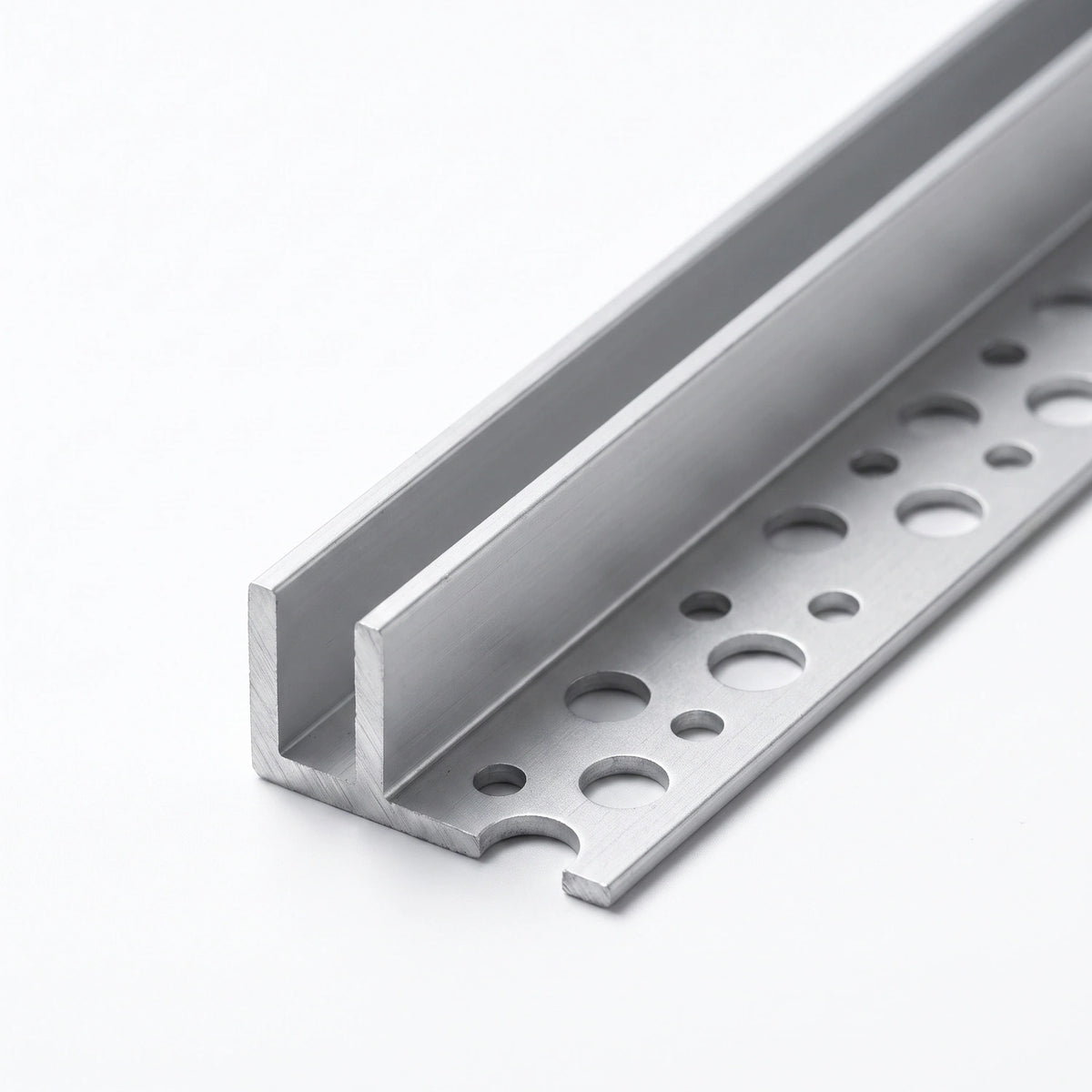

This straight aluminium channel holds matching ATOM LED 10 × 10 mm IP67 Neon Flex in a clean, recessed line. Its perforated side flange sits beneath the tiled finish to help integrate the channel into the installation. Choose a 1 Metre or 2 Metre length for straight runs.
Use it for tiled architectural details, steps and landscape features where the installation and selected Neon Flex are suitable. Plan drainage, joints and access before tiling; the profile does not make an installation waterproof or establish a walk-over rating.
Compatible 10 × 10 mm IP67 Neon Flex
Select the correct voltage, bending direction and light colour:
- 24V Dual Bend: 2700K, 3000K, 4000K or 6000K.
- 48V Top Bend: 2700K, 3000K, 4000K or 6000K.
- 48V Side Bend: 2700K, 3000K, 4000K or 6000K.
Before installation
Profile only: Neon Flex, power supply, controls and fixings are sold separately. There is no opal diffuser cover. IP67 refers to compatible Neon Flex, not the aluminium profile. Check a sample fit and the dimension drawing before permanent installation; this rigid channel is for straight runs, even when the selected Neon Flex can bend.
Delivery charges
Mainland UK: 1 Metre — £6.95 below £90; free Next Day delivery from £90 when no long profile is in the basket. 2 Metre — £19.85 at any order value and excluded from free delivery. Mixed-length baskets containing a 2 Metre profile use the £19.85 long-profile charge. Other destinations are calculated at checkout.
- Product Type
- Aluminium Profile
- Dimensions
- 34 ± 0.2 mm overall width; 9.9 ± 0.2 mm internal channel depth
- Warranty
- 7 Years
Specifications
- Product Type
- Aluminium Profile
- Metres
- 1 Metre / 2 Metres
- Dimensions
- 34 ± 0.2 mm overall width; 9.9 ± 0.2 mm internal channel depth
- Width
- 34 ± 0.2 mm
- Shape
- Straight asymmetric tile-in channel
- Material
- Aluminium
- Attachment
- Tile-in / recessed beneath tiled finish
- Warranty
- 7 Years
- Base Thickness
- 2 mm
- Brand
- ATOM LED
- Channel Opening
- 10 ± 0.2 mm nominal cavity; 9.5 mm clear mouth
- Compatible Ip Rating
- IP67 Neon Flex
- Compatible Voltage
- 24V and 48V Neon Flex
- Flange Projection
- 20 mm
- Flange Thickness
- 1.5 mm
- Included Items
- Aluminium profile only
- Internal Depth
- 9.9 ± 0.2 mm
- Neon Flex Size
- 10 × 10 mm
- Wall Thickness
- 2 mm
Technical Documents
Delivery & Returns
On 97% of products — Royal Mail 48-hour tracked
Mainland UK orders over £90 — order by 1pm, Mon–Fri
30-day returns window — free returns on faulty products
01952 370028 · Mon–Fri 9am–5pm
Shipping
Free UK delivery on 97% of products is sent via Royal Mail 48-hour tracked.
Free next day delivery on Mainland UK orders over £90 (order by 1pm, Mon–Fri).
Orders placed before 1pm UK dispatch the same working day from Telford. Friday 1pm is the cut-off for Monday delivery, excluding paid Saturday Delivery and bank holidays.
Saturday Delivery is available as a paid option at checkout.
Large orders and pallet shipments: call 01952 370028 for a quote.
For more information see our detailed Shipping Page.
International Shipping
Northern Ireland shipping is charged at manual rates depending on shipment weight. International shipping uses manual zone rates at checkout.
Returns & Refunds
The 30-day return window applies to non-customised stock items returned in their original, unopened, uncut condition with original packaging. Eligible items include:
- Standard LED strip lights supplied as 5-metre rolls
- Straight aluminium profiles
- Power supplies and drivers
- Accessories (connectors, controllers, dimmers, end caps)
Custom-cut and bespoke orders (made-to-measure strip, custom-spec drivers, custom-length profiles, special-order items) are non-returnable unless faulty.
Faulty products qualify for free returns — we cover the return postage and either replace the item or refund the full cost including original delivery.
Refunds are processed within 5–10 working days of receiving the returned item.
For more details see our Returns & Refunds page.
Reviews
Frequently Asked Questions
What is the difference between IP65, IP67, and IP68?
IP65 handles surface splashes only and is not suitable for UK outdoor conditions or bathroom wet zones under BS7671. IP67 is rated for temporary immersion and covers outdoor garden installations, most bathroom zones, and exposed architectural features. IP68 handles continuous submersion for ponds, fountains, and fully exposed outdoor applications. For most UK garden and decking projects, IP67 is the correct choice.
Can I cut this product to a custom length?
Yes. ATOM LED products can be cut at the marked cut points without voiding the warranty. Many competitors restrict cuts to 50–100mm intervals, which wastes offcuts on tight custom runs. Use sharp scissors or a craft knife for a clean cut, then seal the end with a suitable end cap.
What size driver do I need?
Multiply the total metres by the wattage per metre, then add 20% headroom. For example: 10 metres of 24V neon flex at 9W/m = 90W total, so you need a minimum 108W driver. Never load a driver above 80% capacity for long-term reliability.
Should I choose 12V, 24V, or 48V?
Choose 12V for caravans, cars, boats, and any project powered by a 12V battery. Choose 24V for most home and trade installs where you need dependable run length with lower voltage drop. Choose 48V for longer architectural runs where extra distance and single-feed flexibility matter. For underwater or submerged installs, use IP68 Waterproof lights and the correct driver for that product; do not use 48V underwater.
What is your warranty?
This profile has a 7 Years warranty. The warranty covers manufacturing defects. Call 01952 370028 for warranty claims.
